UP-3012 High-energy Mechanical Strength Pendulum Impact Testing Machine with Adjustable Impact Height (200-1200mm) and IEC62262 Compliance

  • 1
  • 2
  • 3

Model NO. : UP-3012

Length of Pendulum : 1000mm

Certification : CE, ISO

Packaging Details : Professional export packaging

Swing Rod Angle : 0-90° Adjustable

MOQ : 1

Delivery Time : 5~10 work days

Supply Ability : 20 Unit/month

Service Support : OEM ODM

Specification : Refer to the actual size specifications

Place of Origin : CHINA

Price : Negotiable

Impact Test Height : 200-1200mm

Model Number : UP-3012

Payment Terms : D/P,T/T,Western Union

Brand Name : YOUBI

Applications : Lighting,Safety Products

Language : Chinese and English

Contact Now

UP-3012 High-energy Mechanical Strength Pendulum Impact Testing Machine
Product Overview

This testing device conforms to IEC62262 standards and is designed for mechanical strength testing of sheet metal components including substation arks and metalloid electric energy metering cubicles. The mounting bracket and impact angle are fully adjustable, making it ideal for energy impact tests exceeding 2J.

Applications
  • Mechanical impact strength testing for metal sheets
  • Non-metallic power metering cabinets
  • Substation cable distribution boards
  • Cable distribution boxes
  • Electric energy metering cabinets and similar equipment enclosures
Technical Parameters

Pendulum Specifications: Length: 1000mm; External diameter: 15.9 mm; Thickness: 1.5 mm; Material: Steel

Adjustable Impact Height: 200-1200mm

Mobility: The impact apparatus can be moved on all sides

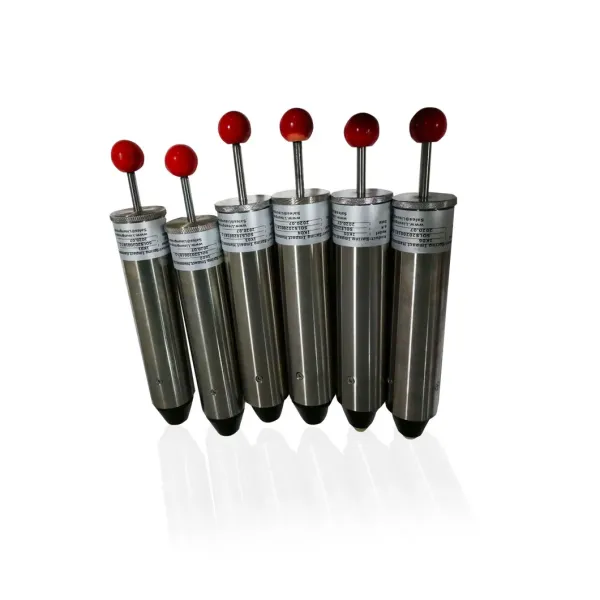

Striking Elements Features
Striking Element Specifications
Energy (J) ≤1 ±10% 2 ±5% 5 ±5% 10 ±5% 20 ±5% 50 ±5%
Equivalent Mass ±2% (kg) 0.25(0.2) 0.5 1.7 5 5 10
Material Nylon Steel Steel Steel Steel Steel
R (mm) 10 25 25 50 50 50
D (mm) 18.5(20) 35 60 80 100 125
f (mm) 6.2(10) 7 10 20 20 25
r (mm) - - 6 - 10 17
Height of Falling
Falling Height Specifications
Energy (J) 0.14 0.2 (0.3) 0.35 (0.4) 0.5 0.7 1 2 5 10 20 50
Equivalent Mass (kg) 0.25 (0.2) 0.25 (0.2) 0.25 (0.2) (0.2) 0.25 0.25 0.5 1.7 5 10
Dropping Height ±1% (mm) 56 (100) 80 (150) 140 (200) (250) 200 280 400 300 200 400
IK Code and Corresponding Impact Energy
IK Code to Impact Energy Mapping
IK Code IK00 IK01 IK02 IK03 IK04 IK05 IK06 IK07 IK08 IK09 IK10
Impact Energy (J) a 0.14 0.2 0.35 0.5 0.7 1 2 5 10 20

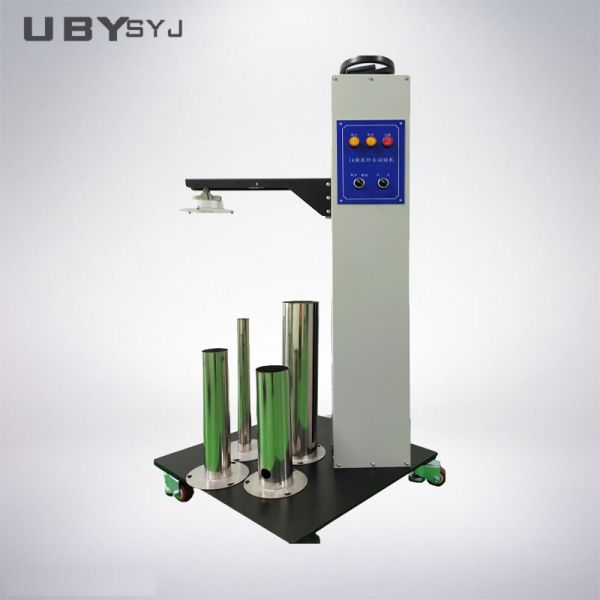

Product Images
UP-3012 High-energy Mechanical Strength Pendulum Impact Testing Machine with Adjustable Impact Height (200-1200mm) and IEC62262 Compliance UP-3012 High-energy Mechanical Strength Pendulum Impact Testing Machine with Adjustable Impact Height (200-1200mm) and IEC62262 Compliance UP-3012 High-energy Mechanical Strength Pendulum Impact Testing Machine with Adjustable Impact Height (200-1200mm) and IEC62262 Compliance
Our Service

We provide comprehensive Consultative Selling services throughout the entire business process:

1) Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer needs.

2) Specifications Customization Process: Create detailed drawings for customized requirements, provide reference photos, and confirm final solutions and pricing.

3) Production and Delivery Process: Manufacture machines according to confirmed PO requirements, provide production progress photos, conduct factory or third-party calibration, and ensure timely delivery.

4) Installation and After-Sales Service: Provide on-site installation support and comprehensive after-sales service.

Frequently Asked Questions

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine includes a 12-month warranty after shipment with free maintenance. Considering sea transportation, we extend this to 14 months for our customers. If your machine requires service, contact us via email or phone for prompt troubleshooting and solutions within 24-48 hours.

2. What about the delivery term?

Standard machines in stock: 3-7 working days. Out-of-stock items: 15-20 working days after payment. Urgent requirements receive special arrangements.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.

4. How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable and begin operation. On-site installation assistance is available when necessary.
